No need internet contract, no need Wi-Fi routers.
Just connect to power source ,
you can start remote control via cellular net.

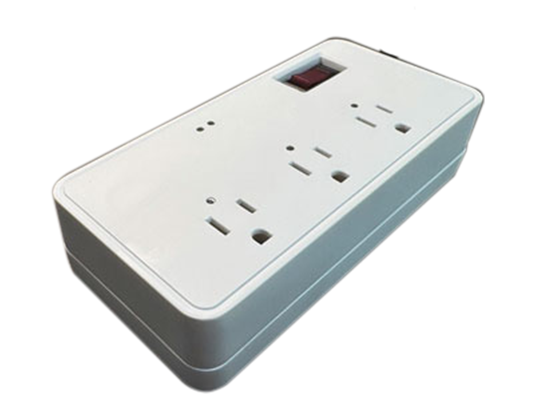

monoZ:Tap
monoZ:Tap is the next generation smart tap.
monoZ:Tap can be operated via mobile network.
monoZ:Jet is installed in monoZ:Tap for cellular communication.
There are 3 Outlets. You can operate remote control from web UI monoZ:Tap View or API.
Product Features
Network connection
LPWA LTE_M/NB-IoT
Via monoZ JET SOM
Connectivity
Mesimo[INCE]
Rated Voltage Range
100V ~ 125V AC
Hardware is designed for the entire range
Rated Frquency
50/60Hz
Max Total Load Current
15 A resistive load
Max Total Load Power
1500W
Max Total Load Current per Outlet
15A
Dimension
165(L) X 80(W) X 38(H)mm
Mock-up sample (@202507 ver.)
Weight
TBD g
Power Cord
NEMA 5-15P with 14AWG, 1.8m
Outlet type
NEMA 5-15R Outlets
Operating temperatur
-10 ~50 degC
Avoid operation outside this range
Operating humidity
30 ~95RH, non-condensing
Storage temperature
-20 ~ 60 degC
Avoid operation outside this range
Storage humidity
30 ~ 95RH, non-condensing

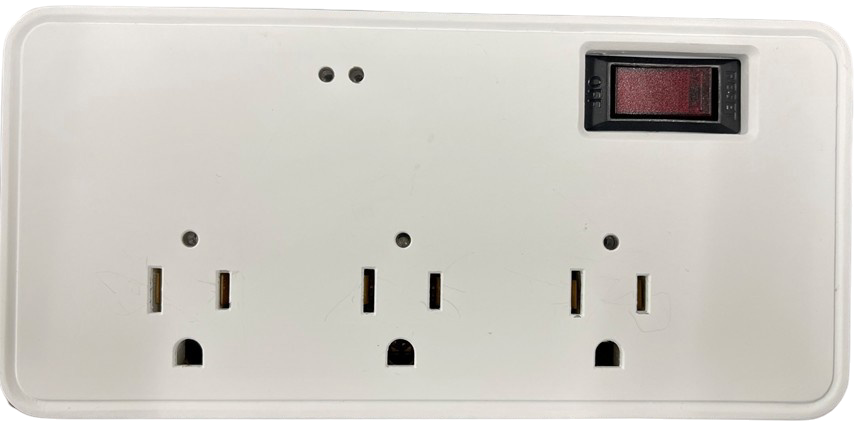

Status LED for power
Main Power Switch
ON/OFF Status LED
ON/OFF Status LED
ON/OFF Status LED
Simple Integration
Though our preconfigured hardware, host can send data to cloud in 3 simple commands
Global connectivity
monoZ:Jet comes with 1NCE simcard loaded with 500MB data for 10 years, thereby enabling connectivity in over 150+ countries
Security
Data from monoZ:Jet to monoZ:Link securely flow through closed off the internet network
FoTA
monoZ:Jet combined with monoZ:Link support FoTA upgrade of the host MCU
Certification
Modem certification HF / GCF / PTCRB / RCM / NCC / IC / Reach / Anatel / CE / TELEC / JATE / KC
TMO / AT&T / Verizon / Docomo / KDDI / DT / Vodafone / Telefonica / Telstra / SKT / LG U+* / Orange*
Why monoZ:TAP?
- Each 3 outlets has one LED which will lights stable green during outlet is ON.
- 2 status LED exists.
- monoZ:Tap View is web page which provides remote control.
- User can check power consumption at monoZ:Tap View web page.
How it works?
3 Steps to loT Device Connectivity
Build
Attach monoZ:Jet to your own or off-the-shelf preferred hardware
Send
Our 3 simple commands allows you to connect and send data to monoZ:Link
Route
monoZ:Link ensure secure bidirectional flow between your device & cloud app
Related Product
monoZ:Link
monoZ:Jet utilizes monoZ:Link IoT platform as its foundation, incorporating integrated edge firmware, connectivity, cloud-based data pipeline and device management. It supports basic protocols such as TCP, MQTT, HTTP thereby fostering IoT in user`s existing device environment. With features for device provisioning & FoTA, monoZ:Link is constructed to handle the key deployments challenges in IoT.
Securely connect your indusrial equipments
monoZ:Connect allow you to securely connect and collect diagnostic data from
your existing industrial machinery through NIDD (Non-IP).
